Ubuntu - haproxy 구성

Ubuntu에서 L7으로 사용하는 Proxy server인 haproxy의 구성하는 방법이다.

Posted
By Dor1
views 7 min read
Ubuntu - haproxy 구성

Ubuntu 22.04 LTS

Host

CLI

개요

  • haproxy는 Proxy의 일종이며, Load balance의 역할로 사용된다.
  • Proxy의 쓰임새는 Client의 access root는 보통 내부에서 우회(Outbound 접근) 할 때 많이 사용하지만, Reverse Proxy는 역으로 외부에서 내부(Inbound) 접근 시에 사용된다.
  • haproxy는 보통 여러 node에 대상으로 접근 시 LB(Load Balancing)를 위해 사용되며 performance 또한 다른 proxy server 대비 우수하다.

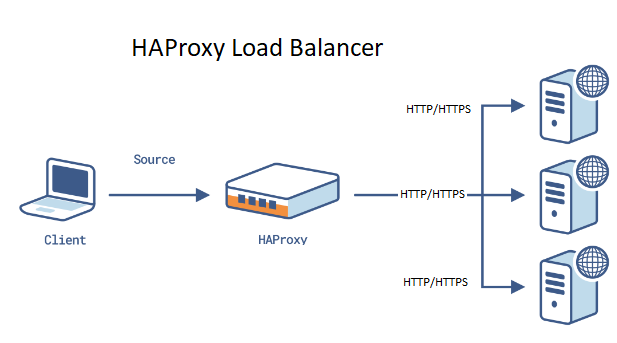

haproxy haproxy

설치

설치는 간단하다.
보통 haproxy는 LB에 목적을 두고 있어 보통 keepalived와 같이 사용된다.(물론 목적 상 따로 사용 가능)
keepalived는 Linux - keepalived 구성 항목을 참조하면 된다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

# psmisc는 process 관리를 위해 설치 함
dor1@is-ha1:~$ sudo apt install haproxy keepalived psmisc
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
psmisc is already the newest version (23.4-2build3).
Suggested packages:
  vim-haproxy haproxy-doc
The following NEW packages will be installed:
  haproxy keepalived
0 upgraded, 2 newly installed, 0 to remove and 87 not upgraded.
Need to get 2,092 kB of archives.
After this operation, 4,998 kB of additional disk space will be used.
Do you want to continue? [Y/n]
Get:1 http://mirror.kakao.com/ubuntu jammy-security/main amd64 haproxy amd64 2.4.18-0ubuntu1.1 [1,639 kB]
Get:2 http://mirror.kakao.com/ubuntu jammy/main amd64 keepalived amd64 1:2.2.4-0.2build1 [453 kB]
Fetched 2,092 kB in 0s (6,303 kB/s)
Selecting previously unselected package haproxy.
(Reading database ... 115965 files and directories currently installed.)
Preparing to unpack .../haproxy_2.4.18-0ubuntu1.1_amd64.deb ...
Unpacking haproxy (2.4.18-0ubuntu1.1) ...
Selecting previously unselected package keepalived.
Preparing to unpack .../keepalived_1%3a2.2.4-0.2build1_amd64.deb ...
Unpacking keepalived (1:2.2.4-0.2build1) ...
Setting up keepalived (1:2.2.4-0.2build1) ...
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /lib/systemd/system/keepalived.service.
Setting up haproxy (2.4.18-0ubuntu1.1) ...
Created symlink /etc/systemd/system/multi-user.target.wants/haproxy.service → /lib/systemd/system/haproxy.service.
Processing triggers for dbus (1.12.20-2ubuntu4.1) ...
Processing triggers for rsyslog (8.2112.0-2ubuntu2.2) ...
Processing triggers for man-db (2.10.2-1) ...
Scanning processes...
Scanning candidates...
Scanning processor microcode...
Scanning linux images...

Running kernel seems to be up-to-date.

Failed to check for processor microcode upgrades.

Restarting services...
Service restarts being deferred:
 systemctl restart cron.service
 systemctl restart ssh.service
 systemctl restart systemd-journald.service
 systemctl restart systemd-logind.service
 /etc/needrestart/restart.d/systemd-manager
 systemctl restart systemd-networkd.service
 systemctl restart systemd-resolved.service
 systemctl restart user@1000.service

No containers need to be restarted.

No user sessions are running outdated binaries.

No VM guests are running outdated hypervisor (qemu) binaries on this host.

TCP Load balancing 설정 해보기

Testbed는 HA 1대로 k8s의 마스터를 proxy하는 구조다.
만약 2대 node 이상을 세팅하려면 /etc/haproxy/haproxy.cfg세팅 파일을 하나의 storage에 넣어두고 mount하여 세팅해도 좋을 법하다.

  • is-ha1 (haproxy)
  • is-mn1 (k8s master)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

# 기본 설정값
dor1@is-ha1:~$ cat /etc/haproxy/haproxy.cfg
global
        log /dev/log    local0
        log /dev/log    local1 notice
        chroot /var/lib/haproxy
        stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners
        stats timeout 30s
        user haproxy
        group haproxy
        daemon

        # Default SSL material locations
        ca-base /etc/ssl/certs
        crt-base /etc/ssl/private

        # See: https://ssl-config.mozilla.org/#server=haproxy&server-version=2.0.3&config=intermediate
        ssl-default-bind-ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384
        ssl-default-bind-ciphersuites TLS_AES_128_GCM_SHA256:TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256
        ssl-default-bind-options ssl-min-ver TLSv1.2 no-tls-tickets

defaults
        log     global
        mode    http
        option  httplog
        option  dontlognull
        timeout connect 5000
        timeout client  50000
        timeout server  50000
        errorfile 400 /etc/haproxy/errors/400.http
        errorfile 403 /etc/haproxy/errors/403.http
        errorfile 408 /etc/haproxy/errors/408.http
        errorfile 500 /etc/haproxy/errors/500.http
        errorfile 502 /etc/haproxy/errors/502.http
        errorfile 503 /etc/haproxy/errors/503.http
        errorfile 504 /etc/haproxy/errors/504.http

위와 같은 기본 설정 값을 변경하여 is-m1의 nginx(NodePort 32222)를 forwarding 한다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97

# k8s의 nginx 상태 확인
dor1@is-mn1:~$ kubectl get svc -A
NAMESPACE     NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)                  AGE
default       kubernetes   ClusterIP   10.233.0.1    <none>        443/TCP                  12d
default       my-nginx     NodePort    10.233.0.38   <none>        8080:32222/TCP           5d23h
kube-system   coredns      ClusterIP   10.233.0.3    <none>        53/UDP,53/TCP,9153/TCP   12d

# IP 확인
dor1@is-ha1:~$ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp6s18: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether b2:1a:45:7b:ca:3f brd ff:ff:ff:ff:ff:ff
    inet 172.16.1.201/24 brd 172.16.1.255 scope global enp6s18
       valid_lft forever preferred_lft forever
    # keepalived를 통하여 만들어진 vIP
    inet 10.1.20.100/16 scope global enp6s18
       valid_lft forever preferred_lft forever
    inet6 fe80::b01a:45ff:fe7b:ca3f/64 scope link
       valid_lft forever preferred_lft forever

# 변경 설정 값
dor1@is-ha1:~$ cat /etc/haproxy/haproxy.cfg
global
  daemon
  maxconn 50000
  log /dev/log local0
  chroot /var/lib/haproxy
  stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners
  stats timeout 30s
  user haproxy
  group haproxy
  pidfile /var/run/haproxy.pid

defaults
  log global
  mode http

  option httplog
  option dontlognull
  option http-server-close

  timeout http-request 10s
  timeout client 20s
  timeout connect 4s
  timeout server 30s
  timeout http-keep-alive 10s

  errorfile 400 /etc/haproxy/errors/400.http
  errorfile 403 /etc/haproxy/errors/403.http
  errorfile 408 /etc/haproxy/errors/408.http
  errorfile 500 /etc/haproxy/errors/500.http
  errorfile 502 /etc/haproxy/errors/502.http
  errorfile 503 /etc/haproxy/errors/503.http
  errorfile 504 /etc/haproxy/errors/504.http

#---------------------- listen --------------------#

listen stats
  bind :9090
  stats enable
  stats realm Haproxy\ Statistics
  stats uri /

listen testApp1
  bind :32222
  balance roundrobin
  mode tcp
  server is-mn1 172.16.1.101:32222 check

# 서비스 재시작
dor1@is-ha1:~$ sudo systemctl restart haproxy.service

# 서비스 확인
dor1@is-ha1:~$ sudo systemctl status haproxy.service
● haproxy.service - HAProxy Load Balancer
     Loaded: loaded (/lib/systemd/system/haproxy.service; enabled; vendor preset: enabled)
     Active: active (running) since Tue 2023-01-31 10:37:58 KST; 1h 2min ago
       Docs: man:haproxy(1)
             file:/usr/share/doc/haproxy/configuration.txt.gz
    Process: 323664 ExecStartPre=/usr/sbin/haproxy -Ws -f $CONFIG -c -q $EXTRAOPTS (code=exited, status=0/SUCCESS)
   Main PID: 323666 (haproxy)
      Tasks: 5 (limit: 4535)
     Memory: 16.5M
        CPU: 1.964s
     CGroup: /system.slice/haproxy.service
             ├─323666 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -S /run/haproxy-master.sock
             └─323669 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -S /run/haproxy-master.sock

Jan 31 10:37:57 is-ha1 systemd[1]: Starting HAProxy Load Balancer...
Jan 31 10:37:58 is-ha1 haproxy[323666]: [WARNING]  (323666) : parsing [/etc/haproxy/haproxy.cfg:16] : 'option httplog' not usable with proxy 'testApp1' (needs 'mode http'). Falling back to 'option tcplog'.
Jan 31 10:37:58 is-ha1 haproxy[323666]: [NOTICE]   (323666) : New worker #1 (323669) forked
Jan 31 10:37:58 is-ha1 systemd[1]: Started HAProxy Load Balancer.

중요한 건 listen의 항목인데, traefik, nginx prxoy등을 만져봤다면 비슷하다는 것을 볼 수 있다.
listen의 항목은 frontend와 backend를 합친 항목으로 생각하면 된다.
구체적인 설정 방법은 아래의 링크를 통해 확인이 가능하다
https://www.haproxy.com/documentation/hapee/latest/configuration/config-sections/listen/

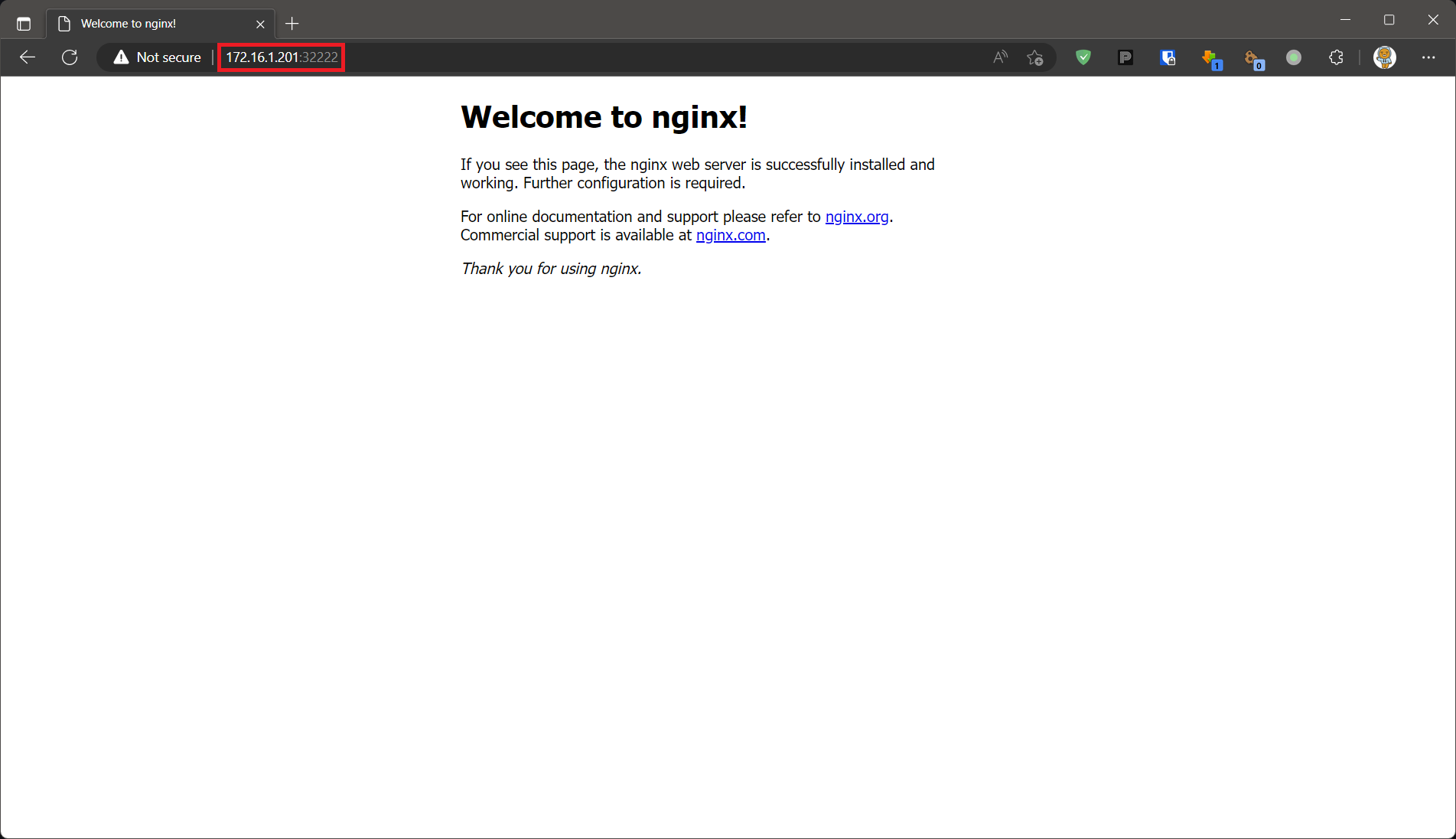

vIP(10.1.20.100)로 구성 vIP(10.1.20.100)로 구성

is-mn1(172.16.1.101)으로도 확인 가능 is-mn1(172.16.1.101)으로도 확인 가능

결과적으로 10.1.20.100의 vIP를 통하여 is-mn1(172.16.1.101)의 32222포트가 proxy 되는 것을 확인 할 수 있다.
또한 꼭 keepalived를 통한 vIP가 아니더라도 is-mn1(172.16.1.101)를 통해 32222포트를 확인 할 수 있다.
